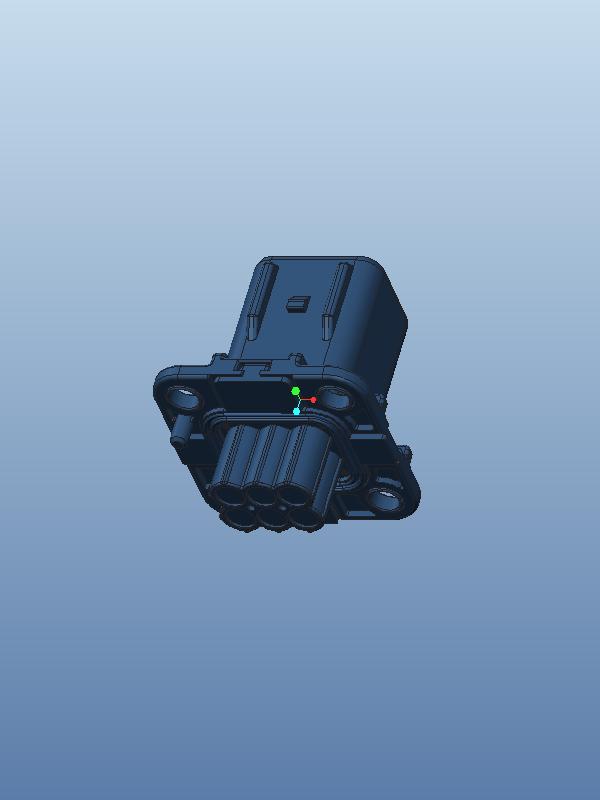

N060 WP 6M ASSY (EV COMP)

N060 WP 6M ASSY (EV COMP)

Part Number :: MG657135-5

Series :: 060 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 40.40 * 34.00 * 34.00

Material Type: PBT+G15

Physical Feature

Sealed: YES

Color: Black

Number of Poles: 6

Primary Locking Type: HSG Lance

TPA: NO

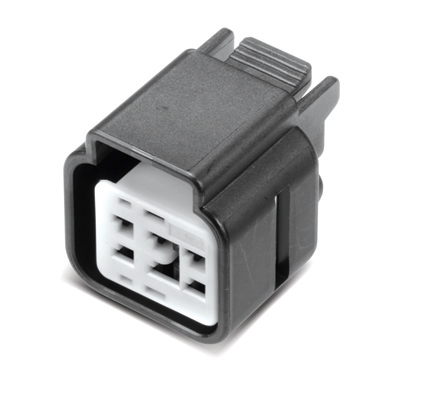

Mating Connector: MG645579-5

Mating Terminal: ST741341-3, ST741342-3

Pitch(mm): 5

Mating Tab Width(in): .060

Electrical Feature

Wire Range: 0.3 ~ 0.5 , 0.85 ~ 1.25

Insulation Resistance: DC 500V 100MΩ Min

Contact Resistance: 5mΩ MAX(Initial)

Terminal Transmits(A): 10

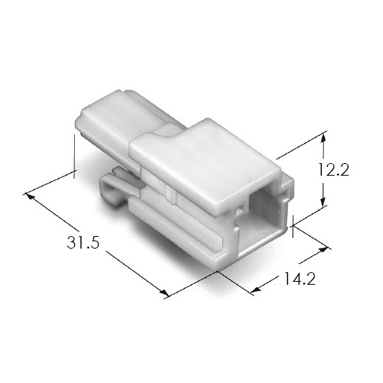

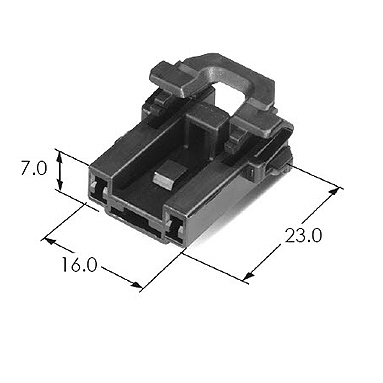

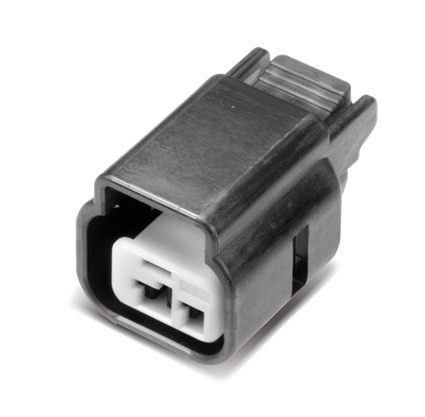

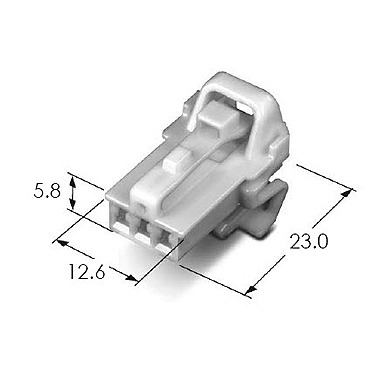

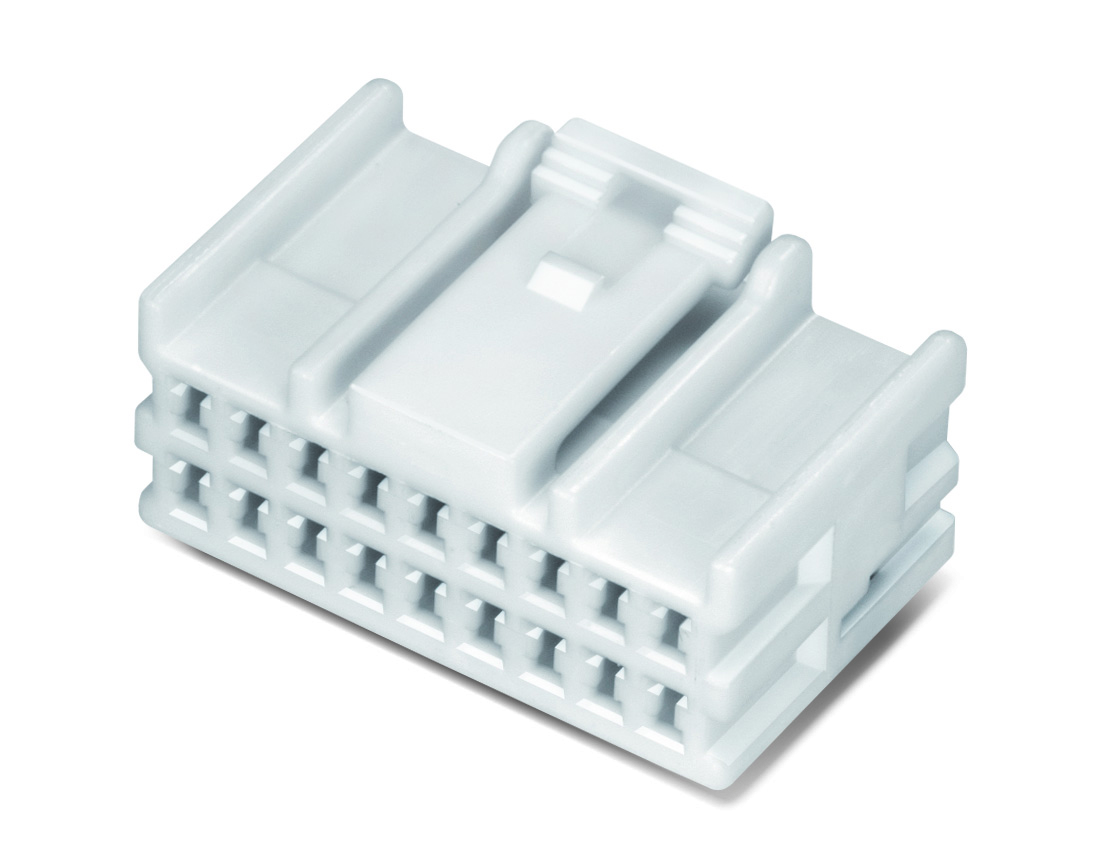

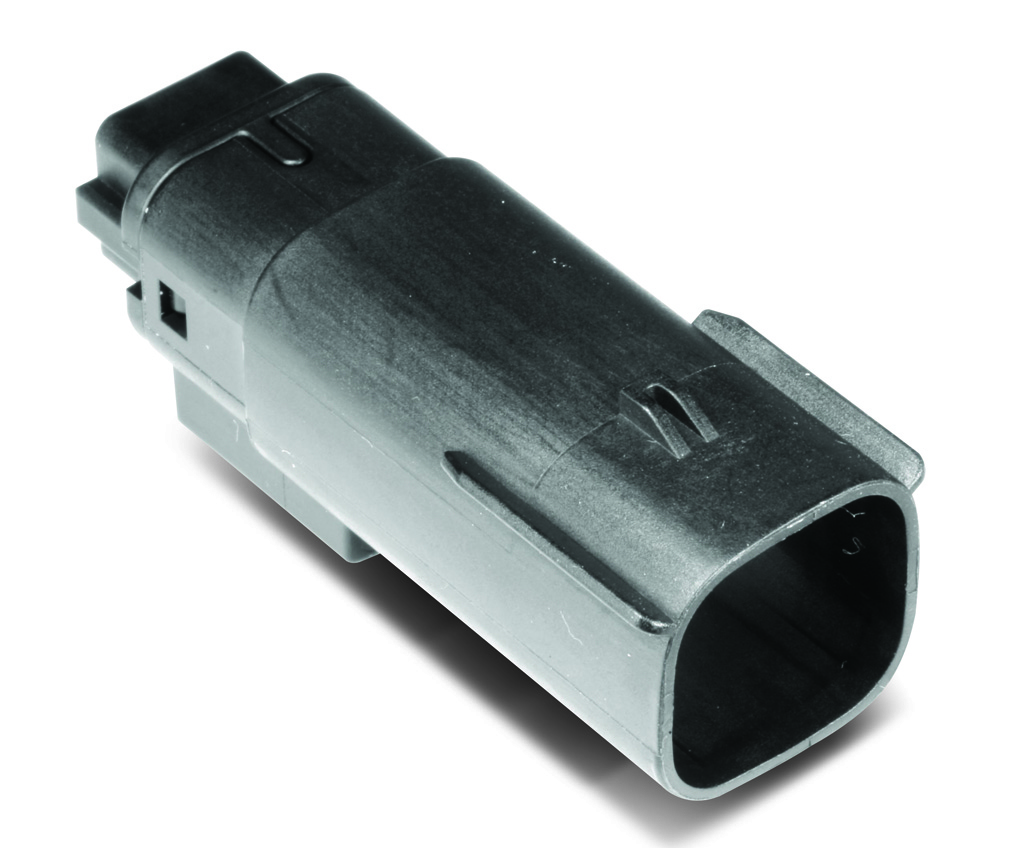

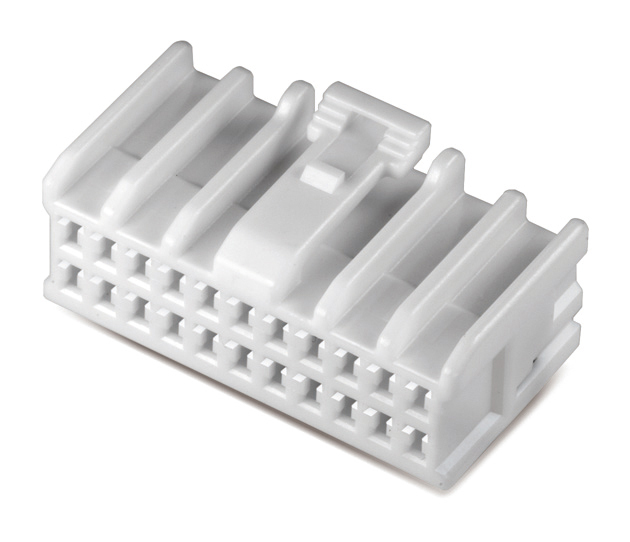

Series Product

/
