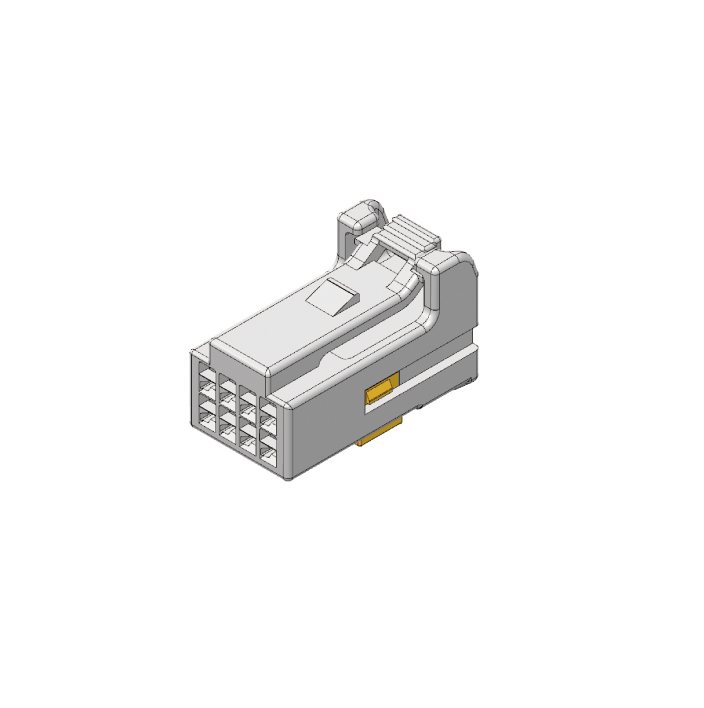

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656980
- Series :
- 025 II SERIES
General Feature
- Series
- 025 II SERIES
- Dimensions
- 11.0*14.0*21.0
- Material Type
- PBT
Physical Feature
- Sealed
- NO
- Color
- Natural
- Number of Poles
- 8
- TPA
- YES
- Mating Connector
- MG646041, MG645716, MG645586
- Pitch(mm)
- 2.2
- Mating Tab Width(in)
- .025
Electrical Feature
- Wire Range
- CHFUS 0.22, AVSS 0.3~0.5
- Insulation Resistance
- DC500V / 100MΩ (MIN.)
- Contact Resistance
- 10mΩ MAX. (Initial)
- Terminal Transmits(A)
- 5
