Wire To Wire Connector

Automotive Connectors > Wire To Wire Connector

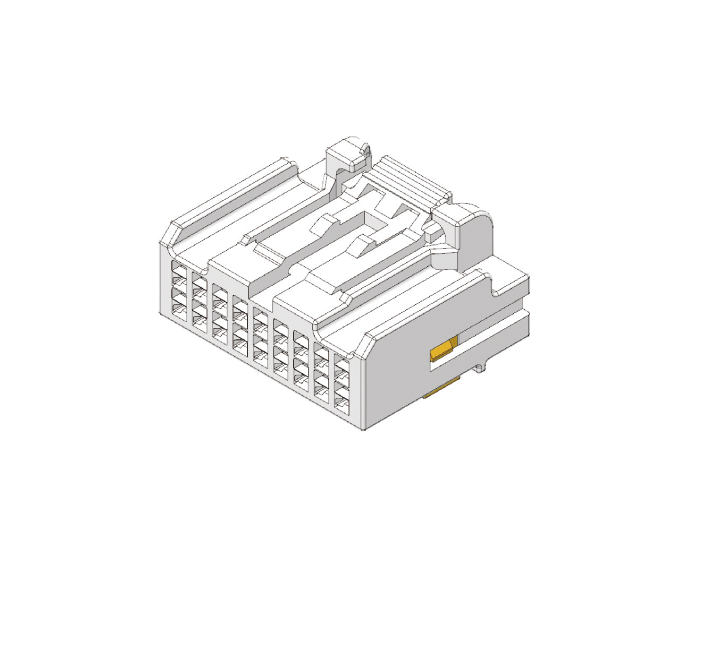

025II 18F ASSY

025II 18F ASSY

Part Number :: MG656929

Series :: 025 II SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 025 II SERIES

Dimensions: 25.74*21.0*13.2

Material Type: PBT

Physical Feature

Sealed: NO

Color: Natural

Number of Poles: 18

Primary Locking Type: HSG Lance

TPA: YES

Mating Connector: MG646100

Mating Terminal: ST731374-3, ST731375-3

Pitch(mm): 2.54

Mating Tab Width(in): .025

Electrical Feature

Wire Range: CHFUS0.13~0.22, AVSS0.3~0.5

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 10mΩ MAX (Initial)

Terminal Transmits(A): 5
