060 8M PIN BLOCK ASSY

Part Number :: MG646269-5

Series :: 060 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 20.2*13.2*14.9

Physical Feature

Connector Type: SMD-VRT

Color: Black

Number of Poles: 8

Mating Connector: MG655827

Pitch(mm): 3.2

Mating Tab Width(in): .060

Electrical Feature

Insulation Resistance: DC 500V 100MΩ Min

Contact Resistance: 5mΩ Max(Initial)

Terminal Transmits(A): 10

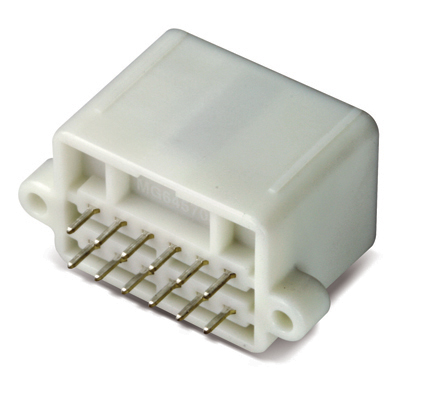

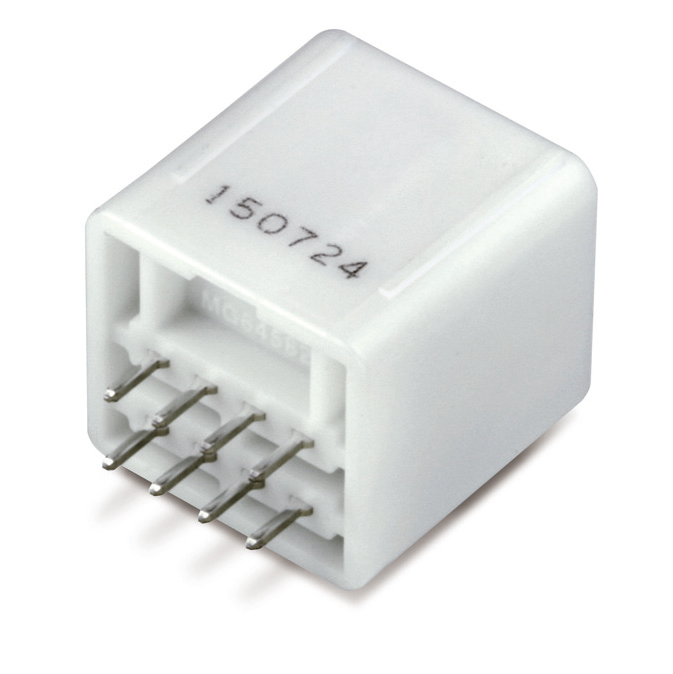

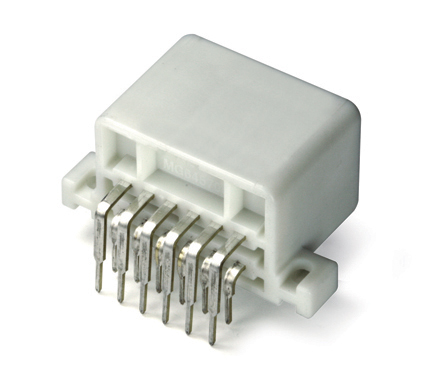

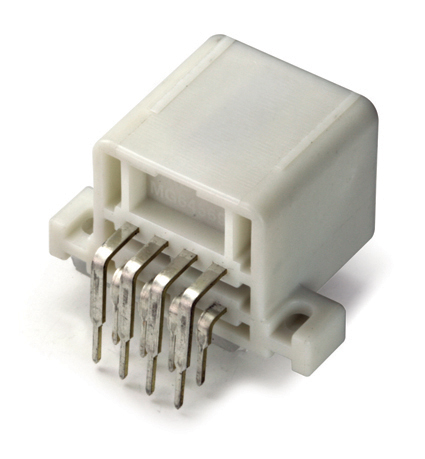

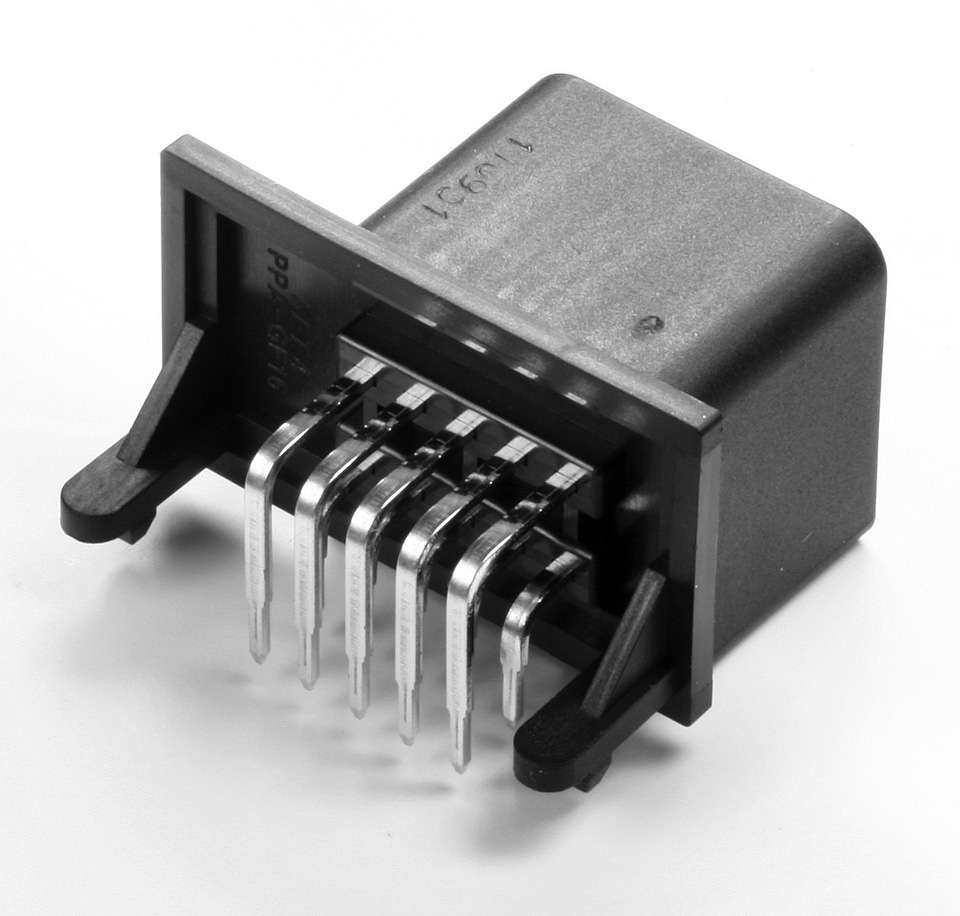

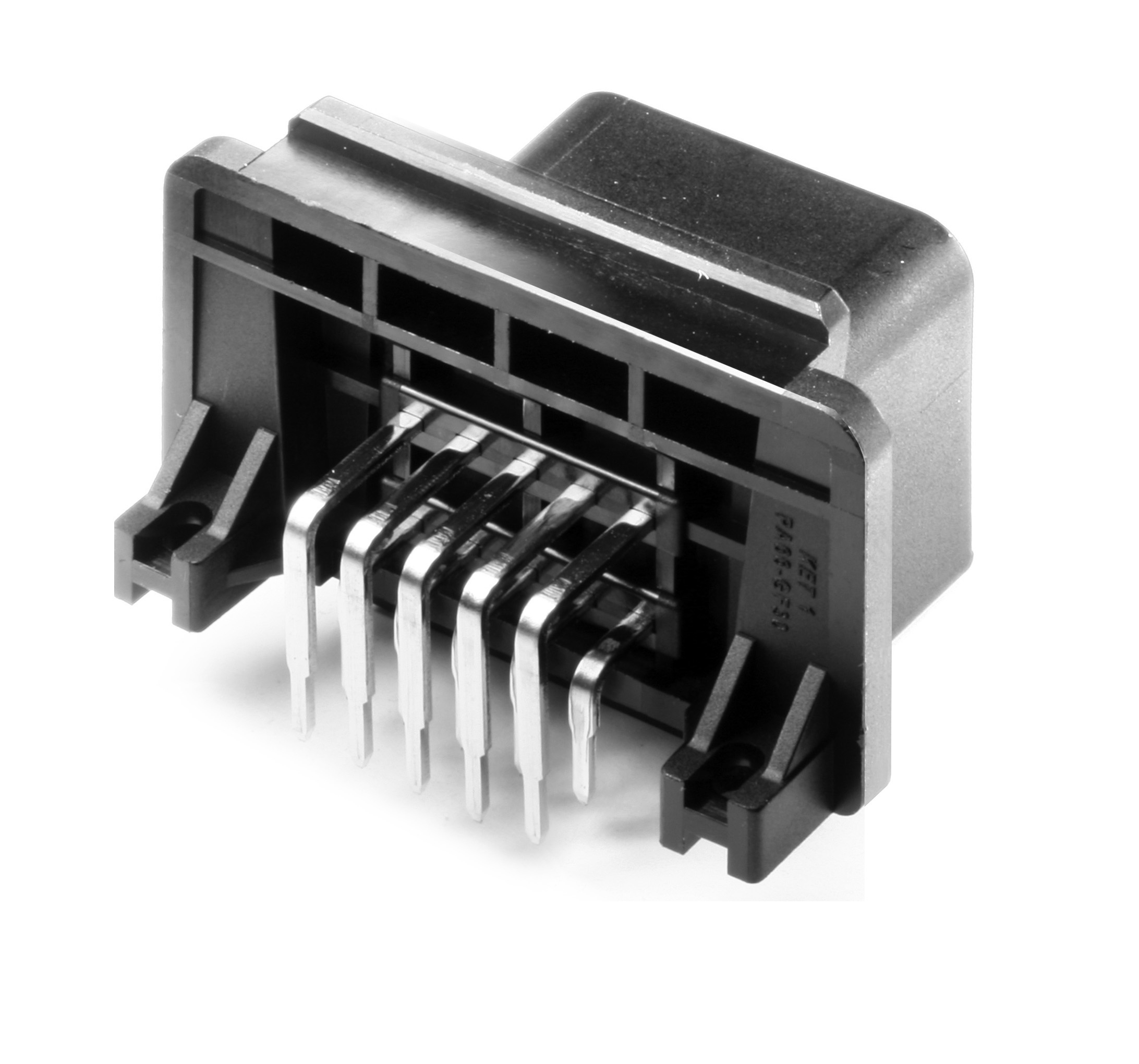

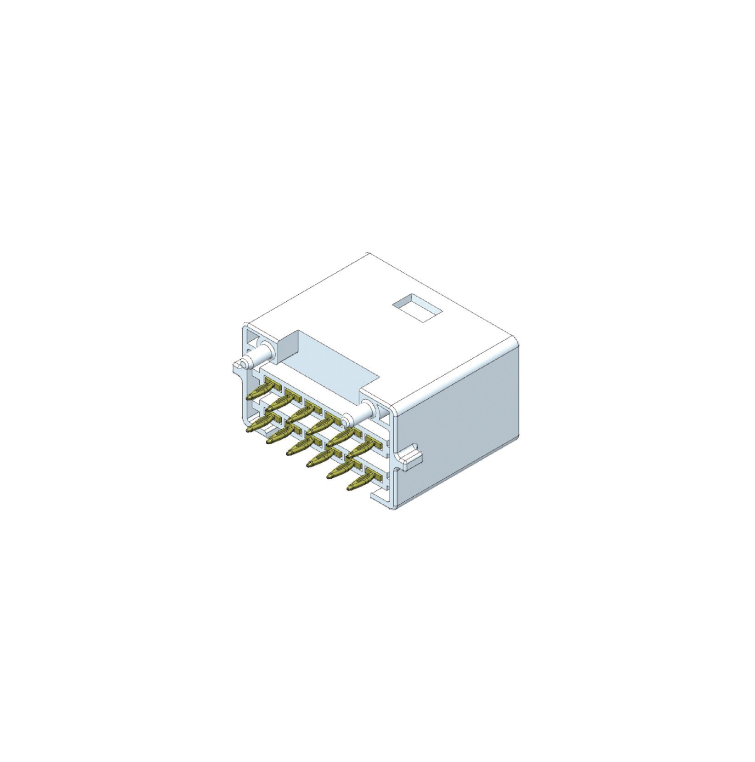

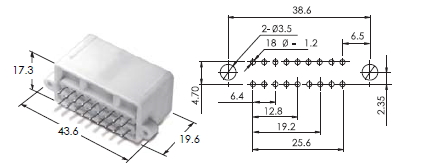

Series Product

/

Mating Product

/

060 8F ASSY(4.40 PITCH)
