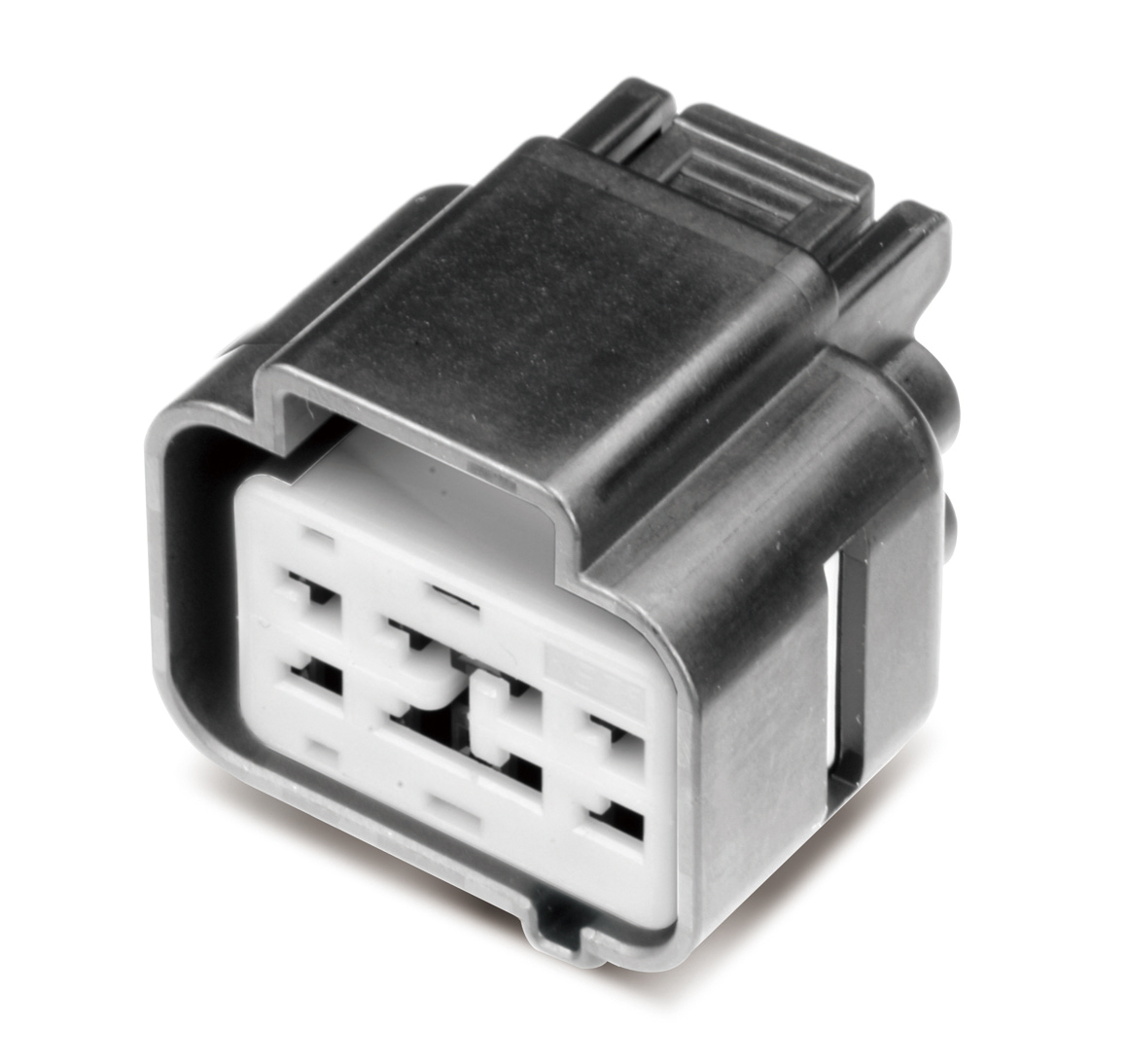

Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG645879-5
- Series :
- N060 SERIES
General Feature
- Series
- N060 SERIES
- Dimensions
- 28.4*27.4*26.4
- Material Type
- PBT+G15
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 8
- TPA
- YES
- Mating Terminal
- ST731368-3, ST731369-3, ST731368-s, ST731369-s
- Pitch(mm)
- 5
- Mating Tab Width(in)
- .060
Electrical Feature
- Wire Range
- AEXF(AVSSXF)0.3~0.5,AEXF(AVSSXF)0.85~1.25
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 10
