PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG645769-5
- Series :
- 060 SERIES
General Feature
- Series
- 060 SERIES
- Dimensions
- 42.4*32.1*28.2
Physical Feature
- Connector Type
- DIP-HZT
- Color
- Black
- Number of Poles
- 10

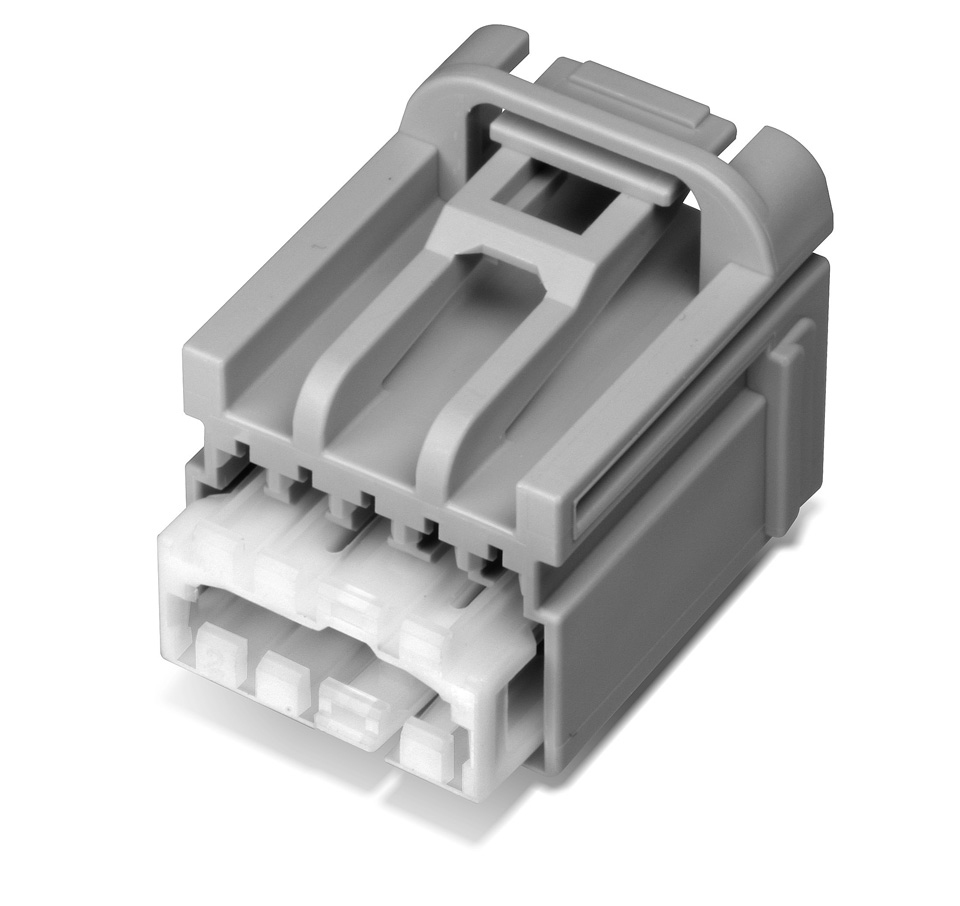

- Mating Connector
- MG655347-41
- Pitch(mm)
- 3.5
- Mating Tab Width(in)
- .060
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 10
