Wire To Wire Connector

Automotive Connectors > Wire To Wire Connector

060 WP 8F ASSY

060 WP 8F ASSY

Part Number :: MG645725

Series :: 060 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 28.4*27.4*25.7

Material Type: PBT+G15

Physical Feature

Sealed: YES

Color: Natural

Number of Poles: 8

TPA: YES

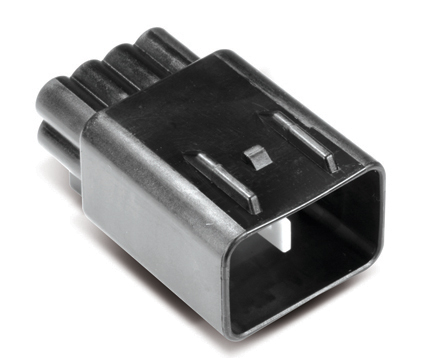

Mating Connector: MG655673

Mating Terminal: ST731368-3, ST731368-s, ST731369-3, ST731369-s

Pitch(mm): 5

Mating Tab Width(in): .060

Electrical Feature

Wire Range: AEXF(AVSSXF) 0.3~0.5,AEXF(AVSSXF)0.85~1.25

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX (Initial)

Terminal Transmits(A): 10
