060 WP 2F ASSY

060 WP 2F ASSY

Part Number :: MG645638-5

Series :: 060 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 18.4*18.1*27.4

Material Type: PBT

Physical Feature

Sealed: YES

Color: Black

Number of Poles: 2

TPA: YES

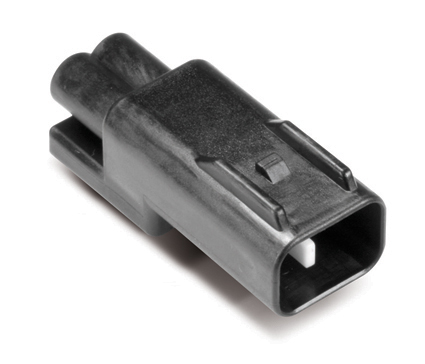

Mating Connector: MG655641

Mating Terminal: ST731368-3, ST731369-3

Pitch(mm): 5

Mating Tab Width(in): .060

Electrical Feature

Wire Range: AEXF(AVSSXF)0.3~0.5,AEXF(AVSSXF)0.85~1.25

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX (Initial)

Terminal Transmits(A): 10
