Wire To Wire Connector

Electronic Parts > Home Appliance Connector > Wire To Wire Connector

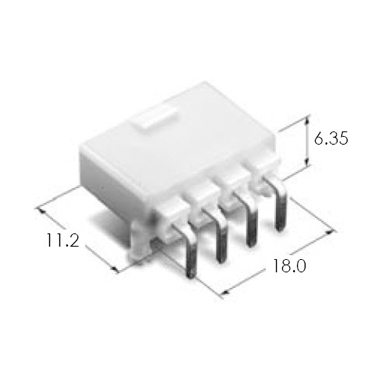

060 4F HOUSING(P:4.2MM)

060 4F HOUSING(P:4.2MM)

Part Number :: MG613368

Series :: 060 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Material Type: PBT

Dimensions: 19.5*18.0*11.0

Physical Feature

Number of Poles: 4

Pitch(mm): 4.2

Color: Natural

Sealed: NO

Mating Rear Holder: MG633784

Mating Terminal: ST730982-3, ST730983-3

Mating Connector: MG643369

Operating Temperature: -40℃ ~ 105℃

GWIT: NO

Mating Tab Width(in): .060

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 7

Rated Voltage: 300v,(ac/dc)

Series Product

/

Mating Product

/
