Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG656913
- Series :
- 025 II SERIES
General Feature
- Series
- 025 II SERIES
- Dimensions
- 15.8*21.0*14.2
- Material Type
- PBT
Physical Feature
- Sealed
- NO
- Color
- Natural
- Number of Poles
- 12
- TPA
- YES
- Mating Connector
- MG646036-5
- Mating Terminal
- ST731374-3, ST731375-3
- Pitch(mm)
- 2.2
- Mating Tab Width(in)
- .025
Electrical Feature
- Wire Range
- CHFUS0.22,AVSS0.3~0.5
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
Series Product
/
-

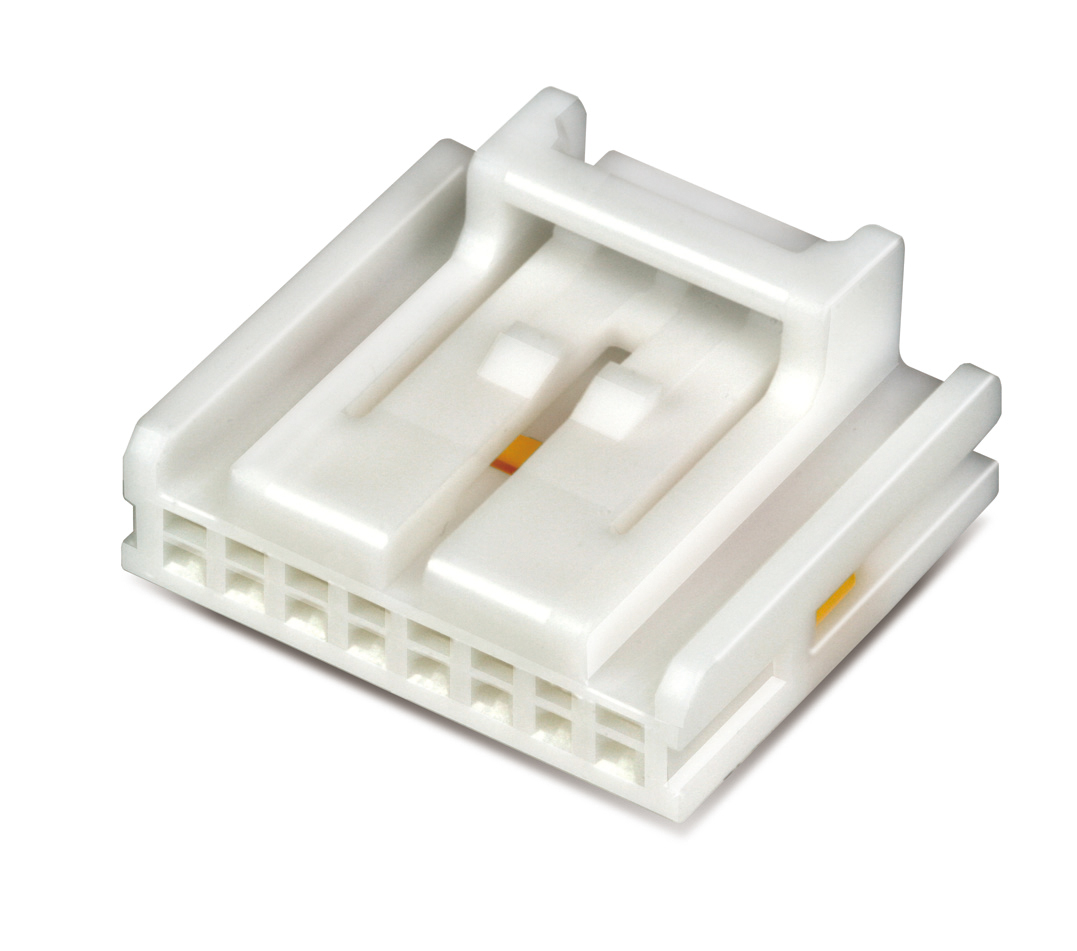

025II 8F ASSY(2.20 PITCH)
-
025II 18F ASSY
-

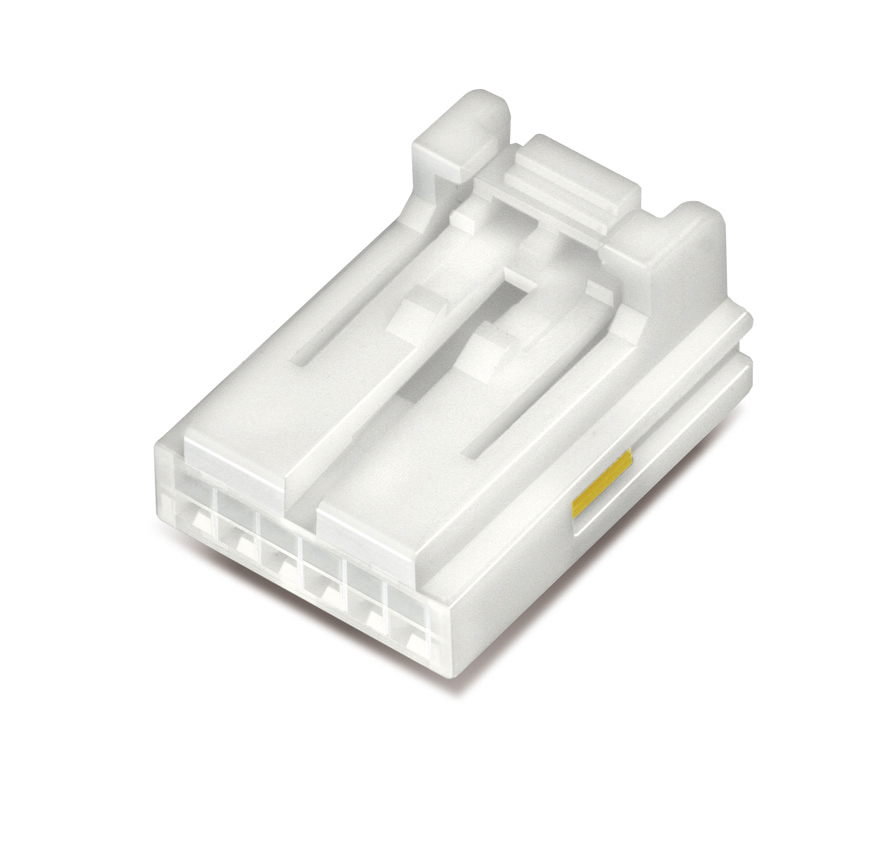

025II 6F ASSY
-
