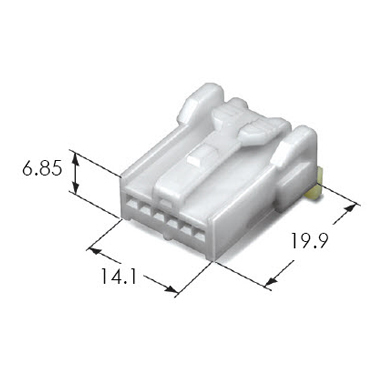

030 6F CONN'T ASSY(91A)
030 6F CONN'T ASSY(91A)
Part Number :
MG651439
Series :
030 SERIES
첨부파일
General Feature
Series
030 SERIES
Dimensions
16.0*22.2*13.0
Material Type
PBT
Physical Feature
Sealed
NO
Color
Natural
Number of Poles
6
TPA
YES
Mating Terminal
ST730913-3, ST730914-3, ST731005-3, ST731463-3
Pitch(mm)
2
Mating Tab Width(in)
.030
Electrical Feature
Wire Range
CAVS0.3~0.5,CAVUS0.3~0.5,AVSS0.3~0.5,CAVUS0.85,AVSS0.22,CHFUS0.22,CIVUS0.35~0.5
Insulation Resistance
DC 500V 100MΩ MIN
Contact Resistance
5mΩ MAX (Initial)
Terminal Transmits(A)
5

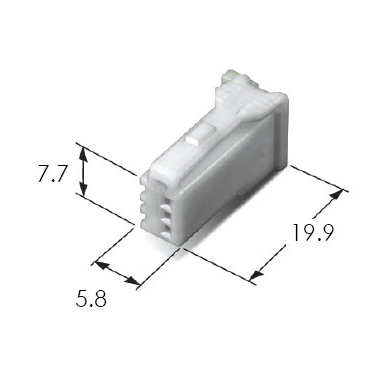

Series Product
/

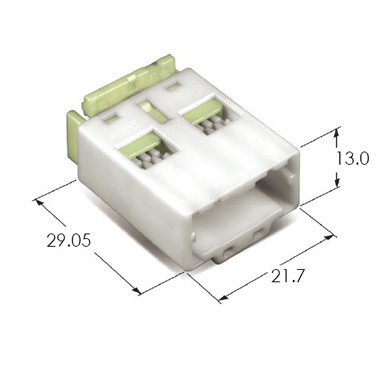

Mating Product
/
