Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG620393
- Series :
- SDL SERIES
- Series
- SDL SERIES
- Material Type
- PBT
- Dimensions
- 12.0*36.4*20.05
- Sealed
- NO
- Color
- Natural
- TPA
- YES
- Primary Locking Type
- HSG Lance
- Number of Poles
- 2

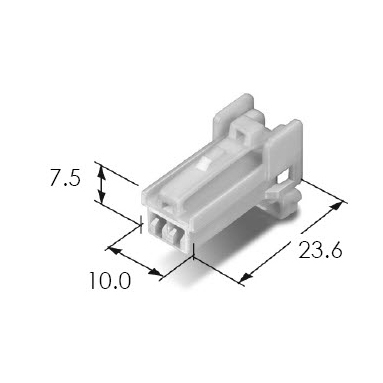

- Mating Connector
- MG610392
- Mating Terminal
- ST740484-3, ST740485-3
- Mating Clip
- MG630418, MG630559, MG631467, MG630922, MG633061, MG633713, MG634647
- Pitch(mm)
- 3.5
- Mating Tab Width(in)
- .070
- Wire Range
- AVSS 0.3~0.85,AVSS 1.25~2.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX
-
