Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG614463-5
- Series :
- 250 SERIES
- Series
- 250 SERIES
- Material Type
- PA66
- Dimensions
- 28.0*24.6*18.5
- Sealed
- NO
- Color
- Black
- Primary Locking Type
- HSG Lance
- Number of Poles
- 5
- TPA
- YES

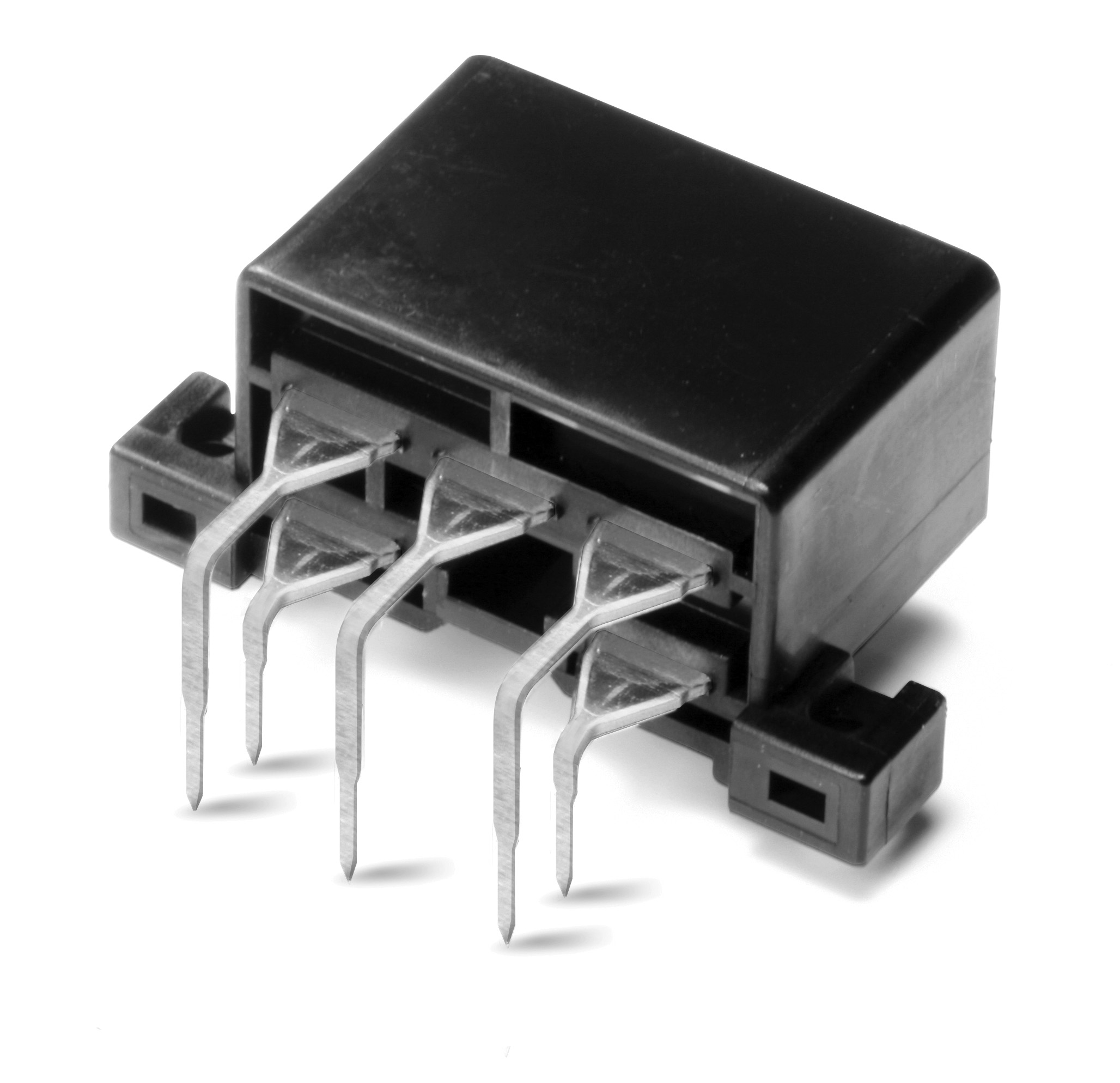

- Mating Connector
- MG644462-5
- Pitch(mm)
- 9
- Mating Tab Width(in)
- .250
- Wire Range
- AVSS 0.3~0.5 / AVSS 0.75~2.27 / AVSS 2.0 / AVSS 3.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX
- Terminal Transmits(A)
- 20
-
