060 14F HOUSING(62C)

060 14F HOUSING(62C)

Part Number :: MG611280-4

Series :: 060 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Material Type: PBT

Dimensions: 32.0*26.8*16.3

Physical Feature

Sealed: NO

Color: Gray

Primary Locking Type: HSG Lance

Number of Poles: 14

TPA: YES

Connector Position Assurance: NO

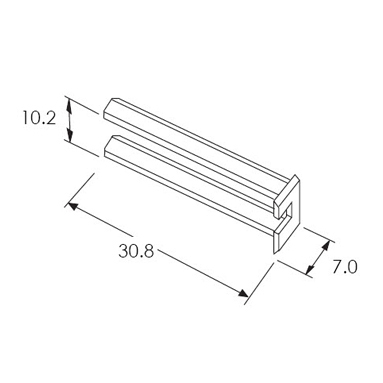

Mating Rear Holder: MG631279-5

Mating Terminal: ST730703-3, ST730704-3

Pitch(mm): 3.3

Mating Tab Width(in): .060

Electrical Feature

Wire Range: AVSS(CAVS) 0.22~0.3,AVSS(CAVS) 0.5~0.85

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX

Terminal Transmits(A): 6
